Brixwell Glass to Wall Mount Shower Door Hinge with Full Back Plate, Solid Forged Brass, 2-13/16" Height, 2" Width, 2-1/8" Hole Spacing(Vertical), Fits 1/4" and 5/16" Glass Panels, Lifetime Brass

The Brixwell Glass to Wall Mount Shower Door Hinge with Full Back Plate is designed for mounting frameless shower doors to a wall surface. It connects the glass door securely to the wall while allowing the door to open and close smoothly. Made from solid forged brass with a Lifetime Brass finish, the hinge coordinates with bathroom hardware and other shower fittings. Inside, the hinge uses stainless steel pins and springs, which support the hinge function and movement. The hinge is suitable for glass thicknesses of 1/4" and 5/16"(6 and 8mm). It measures 2" in width, 2-13/16" in height, and has a back plate thickness of 3/16", width is 1-3/4" and height of 2-13/16", with hole spacing (vertical) of 2-1/8" and hole spacing (Horizontal) of 1-1/8". These measurements help with accurate fitting during installation. The hinge features a mouse ear design along with a self-centering function that returns the door to the closed position at 0 degrees. It also comes with a reversible 5-degree pin, giving flexibility to adjust the setup based on the shower enclosure needs. Glass fabrication required two holes. Rounded corners and a cambered face give the hinge a neat appearance while also supporting fitting and alignment. With 2 hinges, the hinge can support shower doors weighing up to 55 lbs and up to 32" wide. With 3 hinges, the capacity increases to 85 lbs and up to 36" wide. This makes it useful for a variety of shower door sizes. The hinge is supplied with stainless-steel hex clamping screws and wrench, making it ready to be installed as part of the bathroom hinge and shower hardware system.

• FINISH AND MATERIAL: Constructed from solid forged brass with a Lifetime Brass finish, this shower hinge blends with wall plates, shower fittings, and bathroom hardware for frameless glass door installations.
• GLASS THICKNESS RANGE: Designed to fit 1/4" and 5/16" glass panels, this hinge works with many common shower door panels, making it adaptable for glass-to-wall bathroom hinge and shower hardware applications.

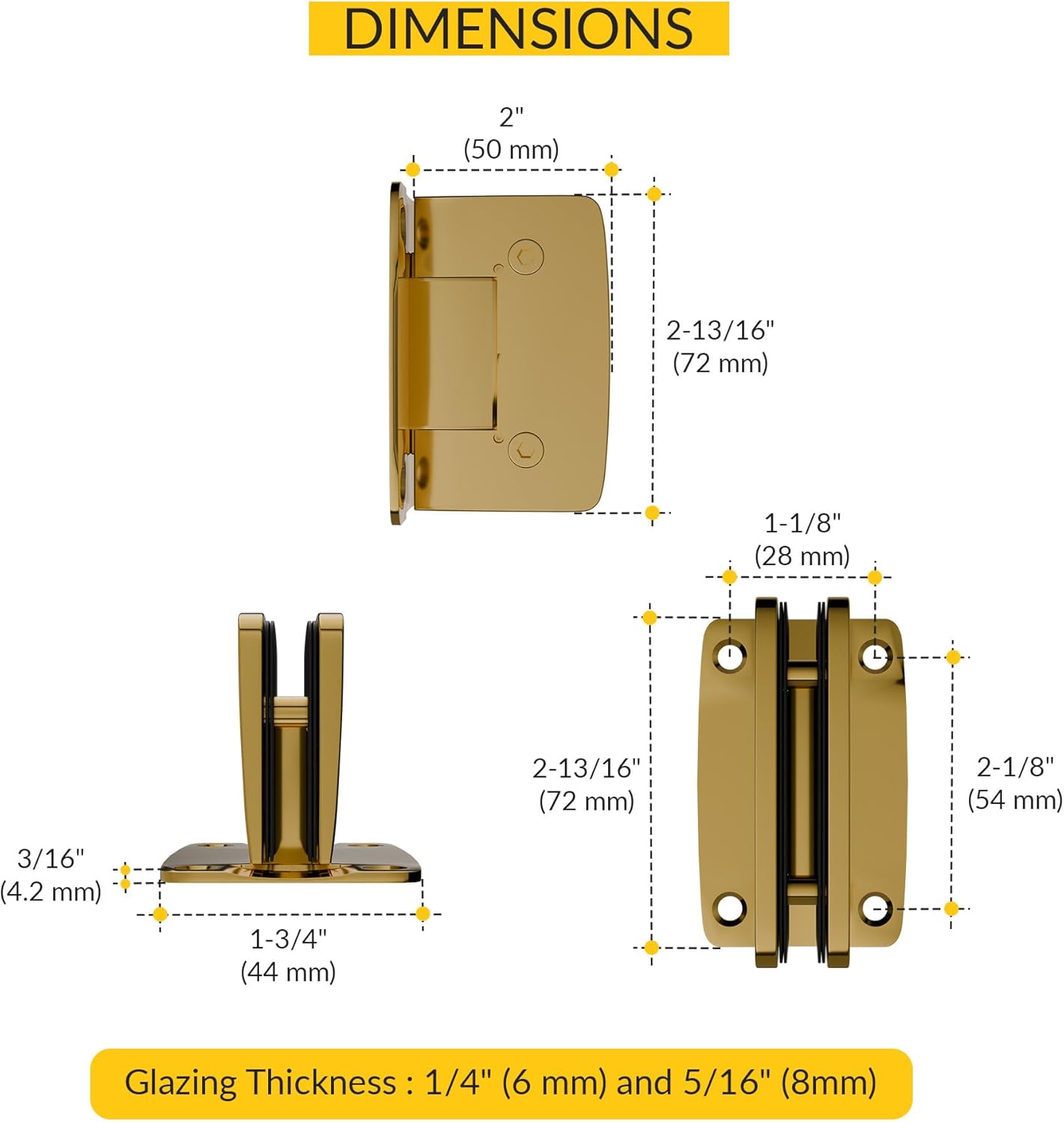

• HINGE DIMENSIONS: Measures 2" width, 2-13/16" height, and 3/16" back plate thickness and 1-3/4" back plate width and 2-13/16" back plate height with hole spacing of 2-1/8" (vertical) and 1-1/8" (horizontal).
• SELF CENTERING FUNCTION: Features a self-centering return that brings the door back to 0 degrees, with a reversible 5-degree pin for installation flexibility, helping align glass doors in bathroom and shower hardware systems.
• WEIGHT AND DOOR SIZE: Supports doors up to 55 lbs and 32" wide with 2 hinges, or up to 85 lbs and 36" wide with 3 hinges, offering flexible use across different shower door sizes and glass panel setups.
• DESIGN ELEMENTS: Built with rounded corners, cambered face, and full back plate design, helping with post-installation adjustments while giving the hinge a clean appearance within bathroom and shower door systems.
• HARDWARE INCLUDED: Supplied with stainless-steel hex clamping screws and wrench, so the hinge can be installed directly to shower doors, providing the fittings required for glass-to-wall bathroom hinge applications.
